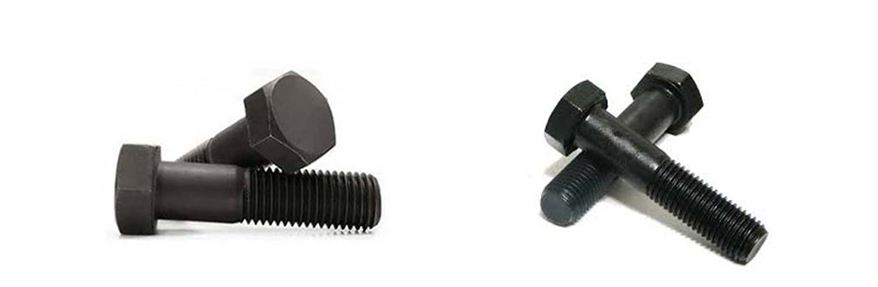

ASTM A193 Grade B16 Bolts Manufacturers, Exporter, and Stockist in India

Rotex Engineers is one of the leading Manufacturer of ASTM A193 Grade B16 Bolts in Mumbai, India. A193 B16 is an ASTM A193 standard material specification for alloy steel bolting for use at high temperatures, high tensile, and exceptional applications. B16 Bolt is a mechanical fastener that is commonly used in conjunction with a nut to connect two or more elements. Bolts or Screw fasteners are utilized more than any other type of mechanical fastener because the connection may be removed and reassembled quickly. SA193 Gr B16 Bolts are very resistant to corrosion at high temperatures, even when subjected to intense thermal cycling. As a heat-treated alloy steel, B16 Bolt Material has a maximum tensile strength of 860Mpa, as well as a maximum yield strength of 725Mpa and a hardness of 35HRC. ASTM A193 Grade B16 Bolts are made up of a head and a cylindrical body with screw threads running the length of it.

Rotex Engineers are well-known ASTM A193 Gr B16 Bolts Manufacturer and Exporter in India. SA 193 B16 can resist temperatures of up to 450°C in some applications. To connect parts, equipment, flanges, and permanent fixtures, B16 Stud Bolts are employed in a wide range of industrial applications. It is available in a variety of sizes and lengths, as well as double end and tap end configurations. Full body and cut thread bolts are also available. It is strong, dependable, and performs well. We are also the suppliers of High Tensile Fasteners and so on.



ASTM A193 Grade B16 Bolts Specification

Standards
ASTM A193 B16: Class 1 Stainless Steel, AISI 304, Carbide Solution Treated.
ASTM A193 Grade B16 Fasteners Sizes
  • Cold Forged SA 193 B16 Nuts and Bolts: M2-M24
  • Hot Forged ASTM A193 Gr B16 Hex Bolts: M24-M100
SA 193 B16 Bolts Size Metric
  • Dia: M10 – M110
  • Length:12 – 1200MM
ASTM A193 Gr B16 Hex Bolts Size Inch
  • Diameter:1/2″ – 4.0″
  • Length:1/2″ – 52″
We produce of ASTM A193 Grade B16 Bolts as per
ANSI B18.2.4 2M, B28.2.4 1M, EU, SAE, UNI, GB5783, CSN, GB/T5782, PN, ASME, ISO, BS, GB/T5783, IS, DIN
SA 193 Gr B16 Bolts & Screws US Threads
UNF, BSW, UNR, Constant-pitch, METRIC, UNK, UNC, BSF, UNEF, UNJF, UNJC


ASTM A193 Grade B16 Bolts Chemical Composition

ASTM
A193 Grade B16
Percentage
%
C
0.37 – 0.49%
Mn
0.65 – 1.10%
Si
0.15 – 0.35%
P
0.035%
S
0.040%
Cr
0.75 – 1.20%
Ni
-
Mo
0.15 – 0.25%


ASTM A193 Grade B16 Bolts Mechanical Properties

Grade
Diameter
Tensile Strength ksi, minimum
Yield Stress, ksi, minimum
Elong, %, minimum
RA % minimum
HBW
HRC
A193 Gr B16
Up to 2-1/2
125
105
18
50
321 max
35 max
Over 2-1/2 to 4
110
95
17
45
Over 4 to 8
100
85
16
45


Application & Uses Of ASTM A193 Grade B16 Bolts

  • ASTM A193 Grade B16 Bolts used in Petroleum Industry
  • SA 193 B16 Bolts used in Aerospace Industry
  • B16 hex bolts used in Chemical Industry
  • ASTM A193 gr B16 bolts used in oil & Gas Industry
  • SA193 Grade B16 Bolts used in Nuclear Energy Sector
  • A193 B16 Bolts used in automotive industries


About ASTM A193 Grade B16 Bolts Manufacturer - Rotex Engineers

The ASTM A193 is a set of requirements that applies to both stainless and alloy steels. The alloy material for the ASTM A193 B16 Stud Bolts specification is a Chromium molybdenum and vanadium grade Alloy steel, according to the requirements. The specifications Heat-treated ASTM A193 B16 Nuts can be utilized in applications require large or high-pressure conditions, as well as other special-purpose applications. In both the power and petrochemical industries, ASTM A193 B16 Bolts are utilized in boilers, turbines, and other pressurized equipment where the equipment is exposed to high temperatures. To ensure higher efficiency and less maintenance, the raw material is sourced from reputable market vendors who provide 100% pure alloy quality. Our entire manufacturing process is carried out under the strict supervision of our professional experts who have desirable product development skills and knowledge. We always guarantee that we will deliver the product on time and in good condition to our dependable customers.
